Ports > Display |
Pin out of the Display port (RJ9 connector):
|

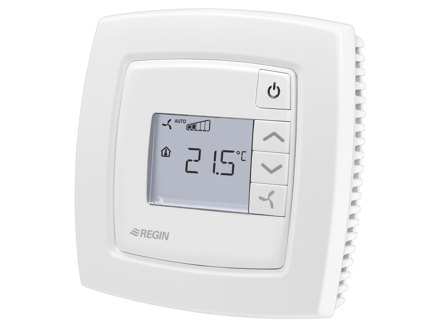

Configuration of EFX port for connection to ED-RU room unit |
|||
Variable |
Available options & Selection |
Note |
||
Configure communication settings |
||||
Configuration > System settings > Communication > Communication port: Display (Room unit) |
||||
Function |
... | EXOline master | ... |
EXOline master - for connection to Regin's expansion units (E15, E28, Pressigo EXOline, etc.) |
||
Format |
|8N1| 8E1 |8O1| 8N2 | 8E2 | 8O2 | |
Structure of data packet: 8 - Data bits O - Parity: None | Even | Odd 1 - Stop bits: 1 | 2 |
||
Baud rate |
|9600 bps| 14400 bps |…| 115200 bps | |
Data exchange speed |
||
|
Configuration of Port for connection to ED-RUD room unit |
|||
Variable |
Available options & Selection |
Note |
||
Configure communication settings |
||||
Configuration > System settings > Communication > Communication port: Display (Room unit) |
||||
Function |
| EXOline slave| EXOline master | Modbus slave | Modbus master| External display | EFX master | |
EXOline master - for connection to Regin's expansion units (E15, E28, Pressigo EXOline, etc.) |
||
Format |
|8N1| 8E1 | 8O1 | 8N2 | 8E2 | 8O2 | |
Structure of data packet: 8 - Data bits N - Parity: None | Even | Odd 1 - Stop bits: 1 | 2 |
||
Baud rate |
|9600 bps| 14400 bps |…| 115200 bps | |
Data exchange speed |
||
